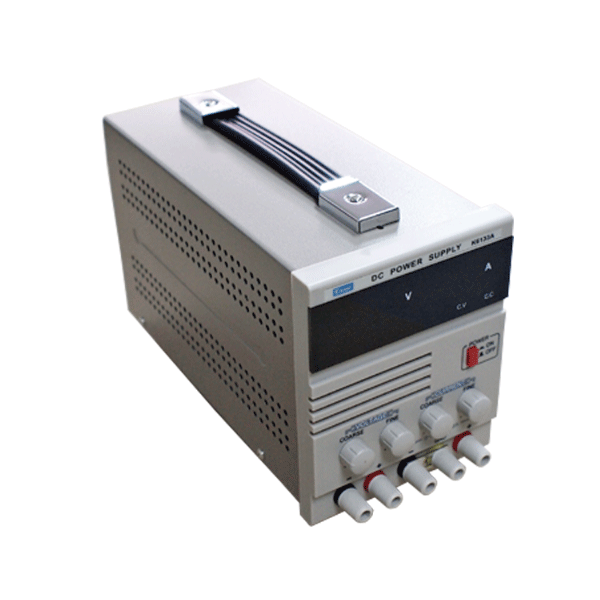

K-6133A
| Number of Output | 1CH | Output Voltage | 0~continuous adjustable for certain value |
|---|---|---|---|
| Output Current | Continuous adjustable for certain value | Source Regulation | ≤ 0.01% + 3mV |
| Load Regulation | ≤ 0.01% + 3mV | Riffle & Noise | ≤ 1mVrms |
| Tracing Error | – | Display | 2 sets of 3 digit LED |
| Display Error | 0.5% + 1d1sit | Output Voltage | 5V |
| Output Current | 2A | Source Regulation | ≤ 5mV |
| Load Regulation | ≤ 15mV | Riffle & Noise | ≤2mVrms |
| Rated Voltage | AC 220V 50~60Hz | Operating Environment | Temperature- 0~40°C Humidity: ≤ 90%RH |
| Storage Environment | Temperature- 20~80°C Humidity: ≤ 80%RH | Size | 120 × 160 × 270 (mm) |
| Weigh | Aprrox. 4.4kg |
