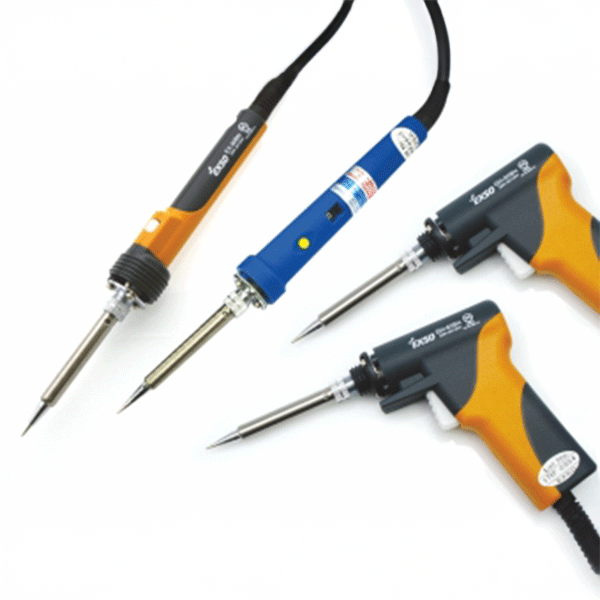

EX-90BN / EX-90A / GH-60AN / GH-60BN

Rated Voltage (EX-90BN)	AC 220V, 60Hz	Rated Voltage (EX-90A)	AC 110/220V (220V), 60Hz
Rated Voltage (GH-60AN)	AC 110/220V, 60Hz	Rated Voltage (GH-60BN)	AC 220V, 60Hz
Size (EX-90BN)	215mm	Size (EX-90A)	210mm
Size (GH-60AN)	195mm	Size (GH-60BN)	195mm
Weight (EX-90BN)	Approx. 60g	Weight (EX-90A)	Approx. 60g
Weight (GH-60AN)	Approx. 100g	Weight (GH-60BN)	Approx. 100g
Power Consumption	20/120W	Tip Temperature	370~700℃
Insulation Resistance	100MΩ

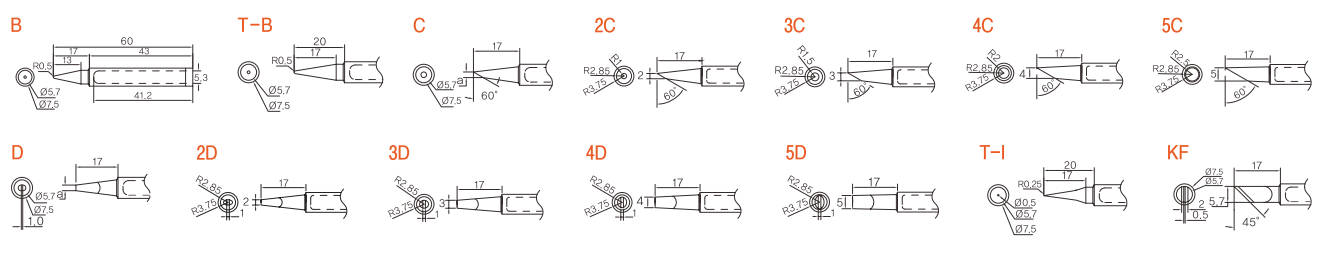

980 TIP
